Rigid PCBs & IMS

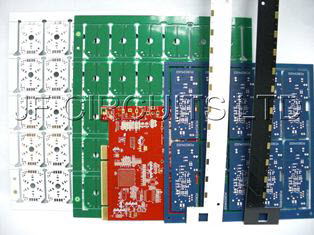

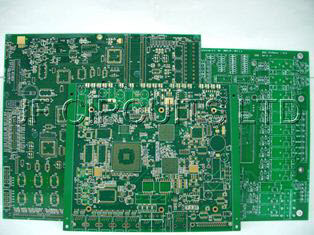

Rigid PCBs

  • Layer Counts: 1L - 12L
  • Min/Max Board Thickness: 0.40 - 3.20 mm
  • Minimum Hole Size: 0.10 mm
  • Minimum Line Width/Spacing: 0.08/0.08 mm
  • Minimum SMT Pitch: 0.25 mm
  • Minimum Land Diameter: 0.25 mm
  • Copper Thickness: 12 μm - 140 μm
  • Base Materials: XPC, CEM1, CEM3, FR1, FR4, BT, High TG, Halogen Free, Rogers
  • Finishing: HASL (Sn/Pb, lead-free), OSP, Immersion Silver/Tin, Flash Gold, ENIG, Selective Gold Plating, Gold Fingers
  • Other Finishing: Carbon Ink Application
  • Profile: Push Back, Edge Bevel
  • Solder Mask: Variable Colors
  • Blue Peelable Mask
  • Impedance Control
  • High End:
    • 14 - 20 layers
    • Back panel (3.20 mm max.)
    • Fine pitch at 0.05 mm line width/spacing
    • Blind/buried vias by sequential buildup
    • Micro-via/HDI by laser drilling
  • Masslam Boards: Semi-finished Multi-layers

IMS

  • Metal Base Circuits Boards: Aluminium, Copper, Ferrum, or Stainless Steel Base
Top

Rigid-Flexible & Flexible PC

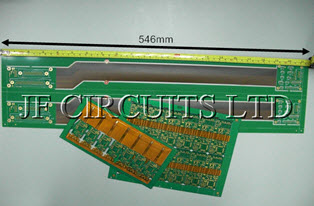

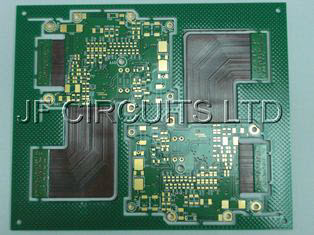

Rigid-Flexible PC

  • Layer Counts: 2L - 8L
  • Finishing: HASL, HASL (lead-free), OSP, Immersion Tin, Flash Gold, ENIG, Selective Gold Plating

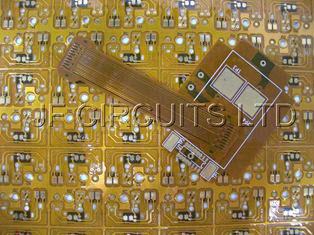

Flexible PC

  • Layer Counts: 1L - 4L
  • Copper Thickness: 12 μm - 35 μm
  • Minimum Line Width/Spacing: 0.08/0.08 mm
  • Minimum Hole Size: 0.30 mm
  • Maximum Panel Size: 250 * 500 mm
  • Base Material: Polyimide & Adhesive - 13 μm, 25 μm, 50 μm
  • Finishing: OSP, Immersion Tin, Flash Gold, ENIG, Selective Gold Plating
  • Coverlay/Soldermask
Top

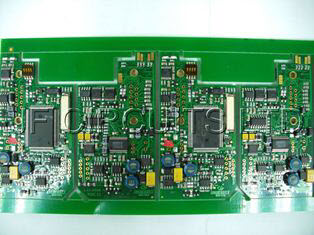

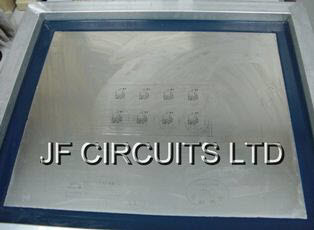

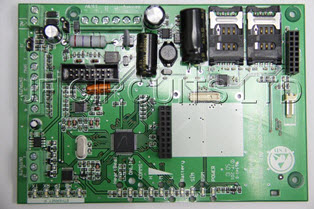

Assembled PCBs

  • OEM and ODM services
  • Engineering expertise throughout the product development process
  • A one-stop solution from sourcing, manufacturing, to shipping
  • Strict quality controls and high reliability
  • Different technology and capabilities: die bonding, through-hole, and SMT components
Top

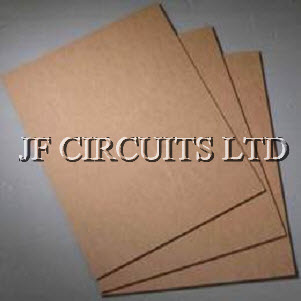

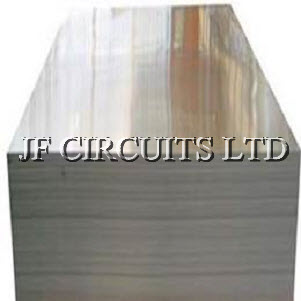

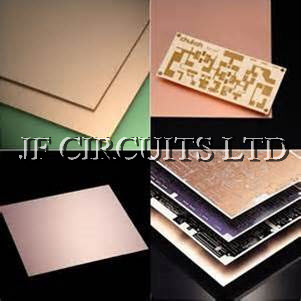

Production Materials

  • FR4, CEM1, Prepreg
  • Woodfibre/Melamine Backup Board
  • Aluminum Foil/Phenolic Entry Board
  • Drill Bit, Slot Drill, Router Bit
  • Photoplotter & Photoresist Film
  • Soldermask, Component & Resist Ink
  • Metal Furniture
  • Consumable Items
Top

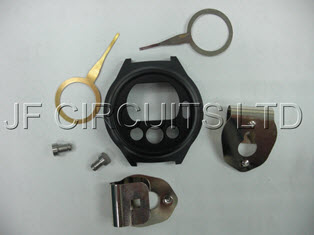

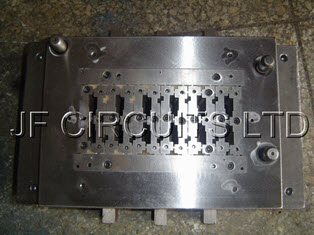

Molds & Parts

Top

Electronic Components

  • LED
  • Cable
  • Relay
  • Battery
  • Keypad
  • Transformer
